e-MMC for Consumer & Industrial
e-MMC: The Right Choice for Lower Densities
KIOXIA’s broad, high-performance lineup of e-MMC products is equipped with an integrated controller that supports a high-speed memory interface compliant with JEDEC Version 5.0/5.1, eliminating the need for the host processor to directly control flash memory.
e-MMC remains an important solution for many applications that cannot migrate to the latest generation of UFS, due to lower density requirements, or because the processor does not yet support a UFS interface. Fabricated with solutions that utilize a 15nm process technology or the more advanced BiCS FLASH™ 3D flash memory, e-MMC is well-suited to a wide range of applications requiring e-MMC as an embedded memory solution.
Key KIOXIA e-MMC Features
- Parallel interface
- C-Temp (-25℃ to 85℃) 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
- I-Temp (-40℃ to 105℃) 8GB, 16GB, 32GB, 64GB
- 11.5 x 13mm 153ball BGA package (4GB also offered in 11 x 10mm package)
- JEDEC Standard
KIOXIA e-MMC Key Technology
Security - RPMB (Replay Protected Memory Block)
RPMB allows only authenticated access and prevents unauthorized data from being accessed in an RPMB partition. A unique authorized key is paired between the e-MMC device and the host. If e-MMC is paired with a different host (or vice versa), the RPMB partition will be inaccessible.
Automatic Sudden Power Loss Protection (PLP)
Ensures all data that has been stored in NAND will remain intact and not corrupted if sudden power loss occurs. This built-in feature automatically restores the original data if writes are not completed before power loss occurs without the need for external capacitors or system back up power.
Well Established Ecosystem
e-MMC has broad ecosystem support with open source software, chipsets and drivers. It supports lower density storage requirements and allows for easy adoption with low design-in effort.
KIOXIA e-MMC Key Applications
Notebook / Ultrabook™ / Tablet / Desktop PC / Gaming PC
Smartphone / Smartwatch / Smart glasses
Game console / Smart TV / Virtual Reality Headsets / Set-Top-Box/Digital Video Recorder / Smart speaker / Smart home / Wearables / Home Health / Home Network
Automation / Digital Healthcare / Transportation / Surveillance / Robot / Drone / Security / Digital Signage / Networking (5G area network) / PoS (Point of Sales)

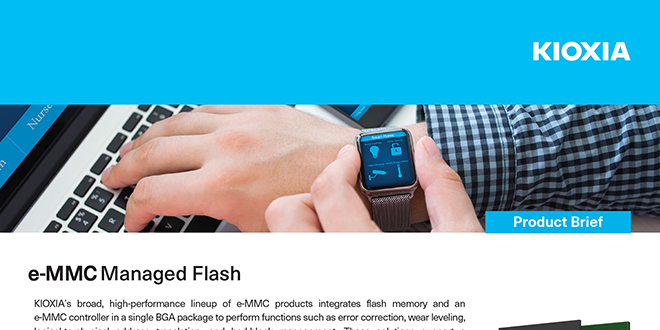

Learn and Evaluate
Consumer Grade e-MMC Specs
* 테이블은 가로로 스크롤할 수 있습니다.
| Process | Capacity | Part Number | e-MMC Version | Max Data Rate (MB/s) |
Supply Voltage | Operating Temperature (℃) |
Package Size (mm) |
|
|---|---|---|---|---|---|---|---|---|
| VCC (V) | VCCQ (V) | |||||||
| FG NAND | 4GB |
THGBMNG5D1LBAIT | 5.0 | 400 | 2.7 to 3.6 | 1.70 to 1.95, 2.7 to 3.6 |
-25 to 85 | 11.0x10.0x0.8 |
| THGBMTG5D1LBAIL | 11.5x13.0x0.8 | |||||||
| 8GB | THGBMUG6C1LBAIL | 5.1 | ||||||
| 16GB | THGBMUG7C1LBAIL | |||||||
| 32GB | THGBMUG8C2LBAIL | |||||||
| BiCS | 16GB | THGAMVG7T13BAIL | 5.1 | 400 | 2.7 to 3.6 |
1.70 to 1.95 | -25 to 85 | 11.5x13.0x0.8 |
| 32GB | THGAMVG8T13BAIL | |||||||
| 64GB | THGAMVG9T23BAIL | |||||||
| 128GB | THGAMVT0T43BAIR | 11.5x13.0x1.0 | ||||||
Industrial Grade e-MMC Specs
* 테이블은 가로로 스크롤할 수 있습니다.
| Process | Capacity | Part Number | e-MMC Version | Max Data Rate (MB/s) |
Supply Voltage | Operating Temperature (℃) |
Package Size (mm) |
|
|---|---|---|---|---|---|---|---|---|
| VCC (V) | VCCQ (V) | |||||||
| FG NAND | 8GB | THGBMJG6C1LBAU7 | 5.1 | 400 | 2.7 to 3.6 | 1.70 to 1.95, 2.7 to 3.6 |
-40 to 105 (1) | 11.5x13.0x1.0 |
| 16GB | THGBMJG7C2LBAU8 | 11.5x13.0x1.2 | ||||||
| 32GB | THGBMJG8C4LBAU8 | |||||||
| 64GB | THGBMJG9C8LBAU8 | |||||||
- Tc=115°C max.
- Contact the KIOXIA Corporation's sales representative for sample schedule about new products.
- Details about your intended usage would be checked before submitting samples of the Industrial grade products.
