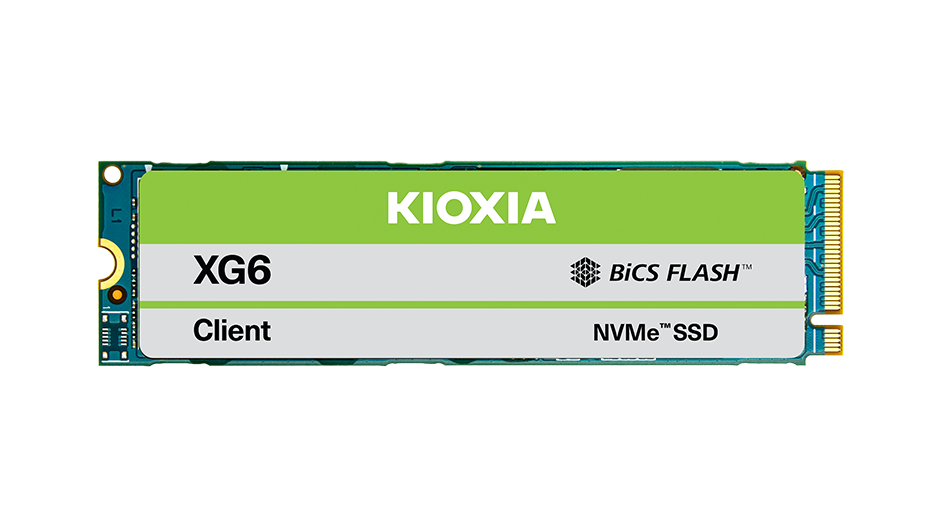

KIOXIA XG6 시리즈
클라이언트 SSD
NVMe™ SSD M.2
XG6 시리즈는 KIOXIA 최신 96층, 3D TLC(셀당 3비트) 플래시 메모리를 사용합니다. 4 세대 BiCS FLASH™ 및 SLC 캐시 기능을 갖춘 XG6 SSD는 각각 3180MB/s 및 2960MB/s의 순차 읽기/쓰기 속도를 지원하며 최대 355,000 랜덤 읽기 및 365,000 랜덤 쓰기 IOPS를 제공합니다. 고성능 외에도 XG6는 XG 제품군의 저전력 설계를 채택하여 활성 모드에서 4.7W 이하, 대기 모드에서 3mW 미만을 소비합니다.
새로운 XG6 시리즈는 전력에 민감한 모바일 PC, 성능 지향 게이밍 PC, 서버 부팅, 캐싱 및 로깅을 위한 데이터 센터 환경에 최적화되어 있습니다.
컴팩트한 M.2 2280 단면 폼 팩터로 제공되는 XG6 시리즈는 256GB, 512GB 및 1024GB의 3가지 용량 모델로 제공되며, 각각 TCG Opal 버전 2.01을 지원하는 자체 암호화 드라이브(SED) 모델 옵션이 있습니다.
문서
주요 기능
KIOXIA 96층 BiCS 플래시™
PCIe® Gen3 x4, NVMe™
최대 용량 1,024GB
M.2 2280 단면
TCG Opal 2.01 SED용 옵션
주요 애플리케이션
- 초박형 노트북 PC
- 고성능 데스크탑 PC
- 게임용 PC
- 데이터 센터에서 서버 부팅,캐싱 & 로깅 사용
사양
* 테이블은 가로로 스크롤할 수 있습니다.
Model Number(Non-SED) | KXG60ZNV1T02 | KXG60ZNV512G | KXG60ZNV256G |
---|---|---|---|
Model Number(SED) | KXG6AZNV1T02 | KXG6AZNV512G | KXG6AZNV256G |
Capacity | 1,024 GB | 512 GB | 256 GB |
Basic Specifications | |||
Form Factor | M.2 2280-S2 Single-sided | ||
Connector Type | M.2 M | ||
lnterface | PCIe® Gen3 x4, NVMe™ 1.3a | ||
lnterface Speed | 32 GT/s (Gen3 x4) | ||
Flash Memory Type | BiCS FLASH™ TLC | ||
Sequential Read | 3,180 MB/s | 3,100 MB/s | 3,050 MB/s |
Sequential Write | 2,960 MB/s | 2,800 MB/s | 1,550 MB/s |
Power Requirements | |||
Supply Voltage | 3.3 V ± 5 % | ||
Power Consumption (Active) | 4.7 W typ. | 4.1 W typ. | 4 W typ. |
Power Consumption (L1.2 mode) | 3 mW typ. | ||
Reliability | |||
MTTF | 1,500,000 hours | ||
Dimensions | |||
Height | 2.23 mm | ||
Width | 22.0 mm | ||
Length | 80.0 mm typ. | ||
Weight | 7.3 g typ. | 7.0 g typ. | |
Environmental | |||
Temperature (Operating) | 0 ~ 95 °C (Controller Temperature) | ||
Temperature (Operating) | 0 ~ 85 °C (Other Components Temperature) | ||
Temperature (Non-operating) | -40 ~ 85 °C | ||
Vibration (Operating/Non-operating) | 196 m/s2 { 20 G } ( Peak, 10 ~ 2,000 Hz ) | ||
Shock (Operating/Non-operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | ||
More features | ・Sanitize command is supported. ・Namespace Management and Namespace Attachment commands are supported. ・Non-Operational Power State Configuration is supported. ・TCG Storage Interface Interactions Specification (SIIS) Version 1.07 is supported. |
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- Read and write speed, tested on the state of "SLC cache=ON", may vary depending on the host device, read and write conditions, and file size.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of their respective companies.
