KIOXIA CD9P-R 시리즈 (2.5인치)

데이터 센터 NVMe™ Read Intensive SSD

KIOXIA CD9P-R 시리즈는 읽기 집약적인 데이터 센터용 NVMe™ SSD로, 광범위한 스케일아웃 및 클라우드 애플리케이션을 지원하도록 최적화되어 있습니다. PCIe^® 5.0 및 NVMe™ 2.0 기술을 기반으로 제작된 CD9P-R 시리즈 SSD는 최대 2,600K IOPS(랜덤 읽기) 및 450K IOPS(랜덤 쓰기)의 일관된 성능을 제공합니다.

KIOXIA BiCS FLASH™ 8세대 TLC 플래시 메모리를 탑재한 CD9P-R 2.5인치 폼팩터 SSD는 하루 1회 쓰기(DWPD)의 내구성과 최대 61.44TB의 저장 용량을 제공하여 하이퍼스케일 데이터 센터 애플리케이션에 적합합니다.

1.92TB 및 3.84TB 용량의 CD9P-R 2.5인치 SSD용 KIOXIA BiCS FLASH™ 5세대 TLC 플래시 메모리

문서

Product Brief (PDF: 132KB)

주요 기능

PCIe^® 5.0, NVMe™ 2.0 사양 준수
개방형 컴퓨팅 프로젝트 데이터 센터 NVMe™ SSD 사양 v2.5 지원(일부 요구 사항)
폼 팩터: 2.5인치, 15mm 두께
KIOXIA 독자적인 아키텍처: 컨트롤러, 펌웨어 및 BiCS FLASH™ 5세대 및 8세대 3D TLC 플래시 메모리

데이터 센터급 워크로드에 최적화된 단일 포트 설계
까다로운 24x7 환경을 위한 일관된 성능과 신뢰성
고밀도 스토리지 구축 환경에 맞게 설계되었습니다
전력 손실 보호(PLP) 및 엔드 투 엔드 데이터 보호
보안 옵션: SIE, SED^[1][2][3][4]

주요 애플리케이션

하이퍼스케일
IoT 및 빅데이터 분석
온라인 거래 처리(OLTP)
(거래 및 관계형 데이터베이스)
스트리밍 미디어 및 콘텐츠 전달 네트워크
가상화 환경

애플리케이션

사양

* 테이블은 가로로 스크롤할 수 있습니다.

SIE Model Number	KCD9XPUG61T4	KCD9XPUG30T7	KCD9XPUG15T3	KCD9XPUG7T68	KCD9XPUG3T84	KCD9XPUG1T92
SED Model Number	KCD9DPUG61T4	KCD9DPUG30T7	KCD9DPUG15T3	KCD9DPUG7T68	KCD9DPUG3T84	KCD9DPUG1T92
Capacity	61,440 GB	30,720 GB	15,360 GB	7,680 GB	3,840 GB	1,920 GB
Basic Specifications
Form Factor	2.5-inch, 15mm thickness
lnterface	PCIe^® 5.0, NVMe™ 2.0
Maximum Interface Speed	128 GT/s (PCIe^® Gen5 x4)
Flash Memory Type	BiCS FLASH™ TLC
Performance (Up to)
Sustained 128 KiB Sequential Read	13,500 MB/s		14,800 MB/s		14,500 MB/s
Sustained 128 KiB Sequential Write	7,000 MB/s					3,600 MB/s
Sustained 4 KiB Random Read	1,200K IOPS	2,600K IOPS				2,000K IOPS
Sustained 4 KiB Random Write	100K IOPS	300K IOPS	450K IOPS		320K IOPS	160K IOPS
Power Requirements
Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	23 W typ.
Power Consumption (Ready)	5 W typ.
Reliability
MTTF	2,500,000 hours @ 0 ℃ to 50 ℃ 2,000,000 hours @ 0 ℃ to 55 ℃
Warranty	5 years
DWPD	1
Dimensions
Thickness	15.0 mm +0 / -0.5 mm
Width	69.85 mm ± 0.25 mm
Length	100.45 mm Max
Weight	130 g Max
Environmental
Temperature (Operating)	0 °C to 75 °C
Temperature (Non-operating)	-40 °C to 85 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² { 2.17 Grms } ( 5 Hz to 800 Hz )
Shock (Operating)	9.8 km/s² { 1,000 G } ( 0.5 ms )

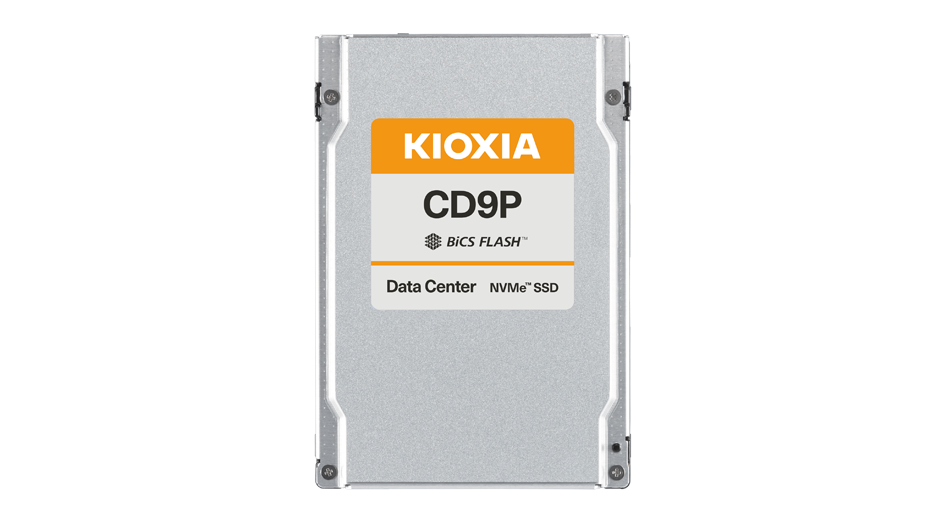

Product image may represent a design model.
Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
GT/s: Giga Transfers per second.
A kibibyte (KiB) means 2^10, or 1,024 bytes.
MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
IOPS: Input Output Per Second (or the number of I/O operations per second).
Temperature (operating): Specified by the composite temperature reported by SMART.
[1] Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) security optional models are available.
[2] SIE optional model supports Cryptographic Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
[3] SED optional model supports TCG Opal and Ruby SSCs. It has a few unsupported features of TCG Opal SSC. For more details, please make inquiries through “Contact us”.
[4] Security optional models are not available in all countries due to export and local regulations.
All information provided here is subject to change without prior notice.
