KIOXIA RM7-V 시리즈 (2.5인치)

Mixed Use Value SAS SSD

KIOXIA RM7-V 시리즈 Value SAS SSD(12Gbit/s)는 혼합 용도에 최적화되어 있습니다. 이 시리즈는 서버에서 SATA를 대체하기 위해 가격이 책정되어 있어 서버 인프라의 변경 없이 향상된 성능과 안정성을 제공합니다.

KIOXIA BiCS FLASH™ 3D 플래시 메모리를 탑재한 이 Value SAS SSD RM7-V 시리즈는 최대 3.84TB 용량으로 3 DWPD(Drive Writes Per Day)를 제공합니다.

문서

Product Brief (PDF: 124KB)

주요 기능

단일 포트 지원 12Gbit/s SAS 인터페이스
960GB ~ 3.84TB의 용량
최대 190K 랜덤 읽기 IOPS(4KiB)
폼 팩터: 2.5인치, 15mm 두께
3 DWPD with 100% 랜덤 쓰기 작업 부하
전력 손실 보호(PLP) 및 엔드 투 엔드 데이터 보호(T10 DIF포함)
보안 옵션: SIE, SED^[1][2][3][4]
5년 보증

주요 애플리케이션

데이터 웨어하우징
스트리밍 미디어
웹 서버

애플리케이션

사양

* 테이블은 가로로 스크롤할 수 있습니다.

SIE Model Number	KRM7XVUG3T84	KRM7XVUG1T92	KRM7XVUG960G
SED Model Number	KRM7VVUG3T84	KRM7VVUG1T92	KRM7VVUG960G
Capacity	3,840 GB	1,920 GB	960 GB
Basic Specifications
Form Factor	2.5-inch, 15mm thickness
lnterface	SAS-3
lnterface Speed	12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Flash Memory Type	BiCS FLASH™ TLC
Performance (in dual-port mode)
Sustained 128 KiB Sequential Read	1,100 MB/s
Sustained 128 KiB Sequential Write	1,050 MB/s		850 MB/s
Sustained 4 KiB Random Read	190K IOPS		180K IOPS
Sustained 4 KiB Random Write	55K IOPS		40K IOPS
Power Requirements
Supply Voltage	12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Ready)	3.6 W typ.
Reliability
MTTF	2,500,000 hours
Warranty	5 years
DWPD	3
Dimensions
Thickness	15.0 mm +0 / -0.5 mm
Width	69.85 mm ± 0.25 mm
Length	100.45 mm Max
Weight	130 g Max
Environmental
Temperature (Operating)	0 °C to 70 °C
Temperature (Non-operating)	-40 °C to 80 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating)	9.8 km/s² { 1,000 G } ( 0.5 ms )

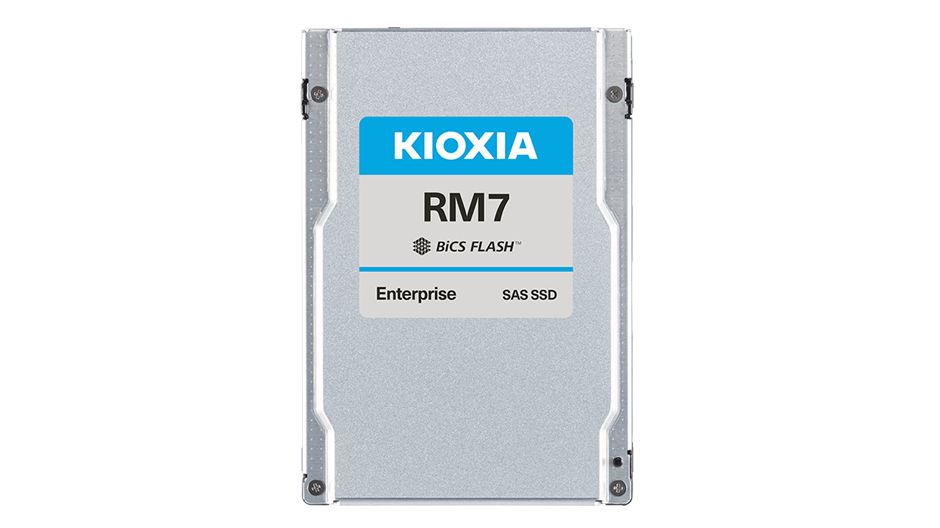

Product image may represent a design model.
Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
A kibibyte (KiB) means 2^10, or 1,024 bytes.
MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
IOPS: Input Output Per Second (or the number of I/O operations per second).
[1] Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) security optional models are available.
[2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
[3] SED optional model supports TCG Enterprise SSC.
[4] Security optional models are not available in all countries due to export and local regulations.
Other company names, product names, and service names may be trademarks of third-party companies.
